PID Sensor Portable Multi Gas Detector IP68 For C6H12 VOC C2H4

  • 1
  • 2
  • 3

Brand Name : Safegas

Model Number : Micmeta

Certification : ATEX，CE，IECEX, EMC

Place of Origin : Shenzhen, China

MOQ : 1 Pc

Price : Negotiable

Payment Terms : Western Union, T/T,Credit card

Supply Ability : 100 pieces/week

Delivery Time : 3-5 working days

Packaging Details : Carton

Sampling method : Diffusion

Testing principle : PID and Electrochemistry

Measure range : Customized

Resolution : Customized

Alarm type : Sound, light, vibration

Color : Red and black

Size : 113*60*32

Net weight : 200g

Contact Now

Man down alarm function PID sensor for C6H12 VOC C2H4 Multi portable gas detector with IP68 degree





Product overview



MicMeta is an IECEx/ATEX/EMC certificated portable multi gas detector, which is diffusion type. The protection degree of Micmeta is IP68 for unmatched water protection. With explosion proof grade Ex ia I Ma, Ex ia IIC T4, it can be used in coal mines. With standard data logger, real time data and alarm events can be export to PC directly. It also support optional function with wireless communication so user can access to data remotely.





Product Advantages

  • IP66/IP68 water & dust resistant and 1.5 meters drop resistant case, rugged and durable designs
  • Compact, lightweight, small size with back clip, ergonomic and wearable design
  • Standard man down alarm, password protection, ID identification function
  • Real time value, TWA, STEL, MAX, MIN multiple numerical display
  • With self-test function, which can improve safety by automatic self-test
  • One press to restore factory settings
  • Support firmware upgrade remotely
  • With docking station to perform daily bump test and calibration (Optional)
  • Wireless data transmission including Lora, Bluetooth (Optional)
  • With rechargeable lithium polymer battery, extended 24hour battery runtime
  • Support PPM and mg/m3 gas unit switch by one key





Product specification



Sampling method Diffusion
Gas type C6H12 VOC C2H4
Measure range Customized
Resolution Customized
Response time ≤60S (T90)
Precision ≤±5%FS or ±10% (depends on the specific sensor
Language Chinese/English
Automatically test and calibrate after power-on Including auto-test, calibration, auto-zero, maximum value (MAX), minimum value (MIN), STEL, TWA value
Unit PPM and mg/m³ can be switched and displayed by one key, and the concentration value is automatically converted by the system
Disaply Segment code LCD display
Calibration platform Modification, function testing and calibration operations can be performed on DKM-MicMeta docking station (optional)
Data record 1000 sets data records and 100 sets events records
Alarm 95dB buzzer (@30cm), vibration alarm and flashing red bars and alarm status indication on the screen, alarm latched; diagnostic alarm and battery under voltage alarm, man down alarm, alarm set points for all sensors are user adjustable.
Battery 3.7V rechargeable lithium battery, battery capacity 2300mA
Working hours Standby time 18h, charging time <6h
Wireless transmission Bluetooth transmission function (optional), Lora transmission function (optional)
Explosion-proof grade CNEX:Ex ia IIC T4 Ga
(EU regulations) 2004/108/EC(EMC), 94/9/EC(ATEX), CE
Protection grade IP66/IP68
Working temperature -20°C~55°C
Humidity 0-95%RH (non-condensing)
Environmental pressure 86～106Kpa
Size 113*60*32mm (length * width * height)
Weight 200g (with lithium battery)

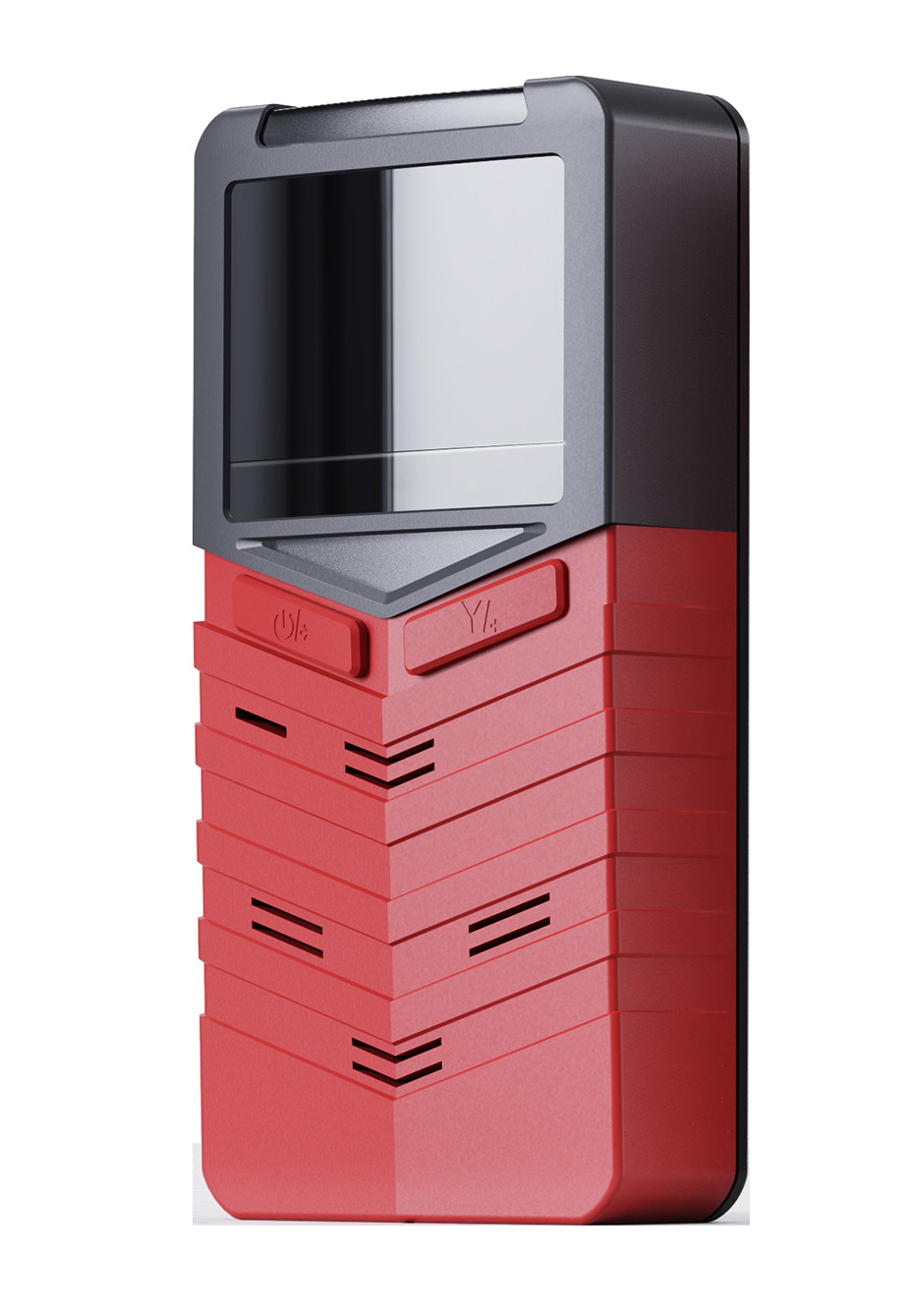

Product picture

PID Sensor Portable Multi Gas Detector IP68 For C6H12 VOC C2H4

PID Sensor Portable Multi Gas Detector IP68 For C6H12 VOC C2H4





Product Application



Oil,

Chemical,

Medicine,

Energy,

Environmental Protection,

Electronic,

Municipal Engineering,

Agriculture and Forestry,

Household Appliances,
