Product Description
SG100-D Fixed Gas Detector
SG100-D series is a cost-effectivegas detector for continuous monitoring of toxic gases, oxygen,flammable, VOC gases, can detect up to 4 gases in 1 device, suitable for applications with multi-gas detection requirements.It is IECEx, ATEXcertified,with intrinsically safe explosion grade.Having a 2 wire or 3 wire 4 to 20 mA analog output, RS485 modbus output, optional HART output,making it to be compatible with most control systems. With optional wireless data transmission,customer is able to review, download the data remotely.Support both magnetic and remote control,flexible for setting.

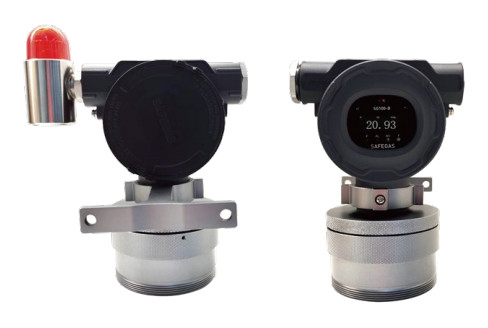

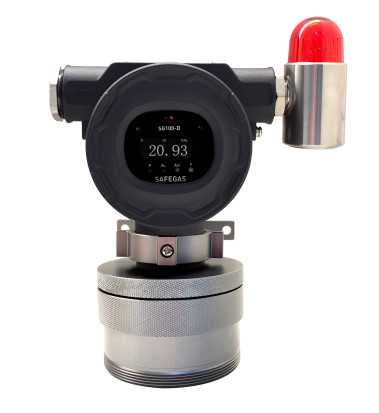

Product Picture
Product Advantage
- IP66/IP68, can effectively waterproof and dustproof
- Intelligentplug and play sensor module.The module support calibration by Safegas PC software, making replacement and maintenance easier.
- With standard splash guard to protect sensor for outdoor installation or environment with water splash.
- Smalland light,weight is only 1 kg,and the detector comes with standard mounting bracket,easy for installation.
- Standard 4-20 mA analog signal output and RS485 modbus signal output,optional Hart output, 2wire output.Compatible with most of control systems.
- The detector comes with 3relays, including low/high/fault alarm relay(Optional)
- Support both magnetic andremote control, flexible for setting.
- SG100-D have opttional wireless transmit function, support transmit the detected data by Lora or 4G, user can view the data remotely, realized intelligent monitoring
Specifications:
| Detected Gas | Can be customized, detect up to 4 gases |
| Measure Range | Can be customized |
| Install Method | Wall-mounted, piping type, flow-type |
| Output signal | 4-20mA, 1-5V, 2-10V, RS485, RS232, relays (optional) |
| Precision | ≤±1%F.S. (to be specialized) |
| Zero shift | ≤±1%(F.S./year) |
| Display | 4 digits Nixie tube display. |
| Connection mode | G3/4 external thread explosion-proof flexible pipe |
| Thread Size | Standard M20*1.5, 3/4NPT |
| Temperature | –20℃～50℃ (electrochemistry principle),
–40℃～70℃ (catalytic combustion principle) |
| Humidity | 10-95%RH (non-condensing) |
| Explosion-Proof | Ex db ⅡC T6/ Ex db ia IIC T6 Gb/ Ex da db ia IIC T6 Gb |
| Degree of protection | IP66/IP68 |
| Material | Sensor housing: aluminum alloy or 316 stainless steel |
| Power | 12-24V DC |
| Dimensions | 158×129×70mm |
| Weight | ≤1kg |
| Approval | CE, CNEX explosion proof certificate, CMC(China Metrology Certification), IECEx, ATEX |
| Warranty | 12 months |
Gas

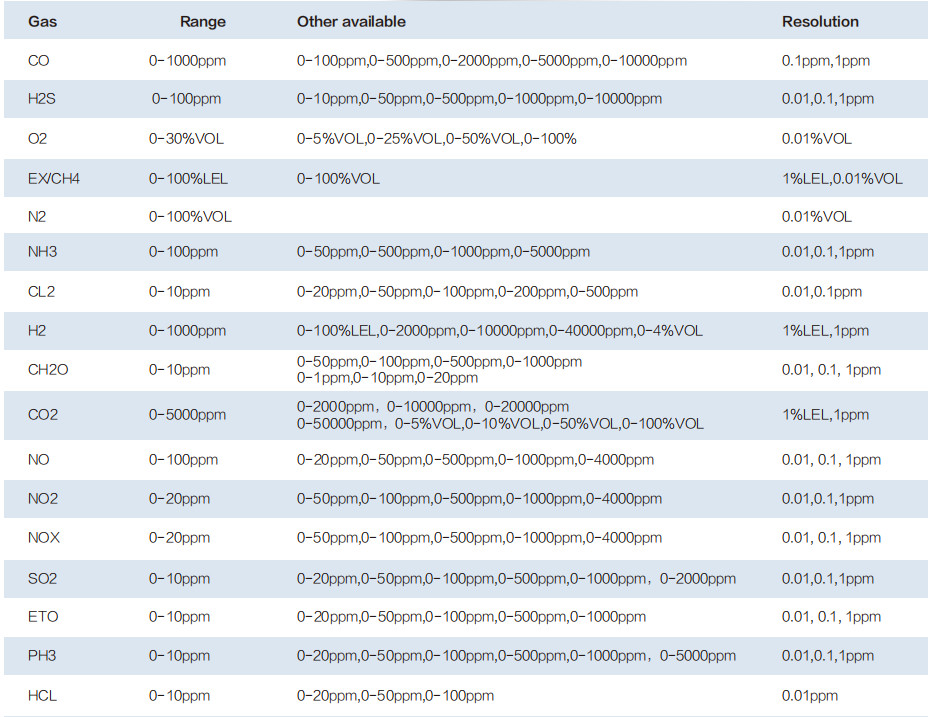

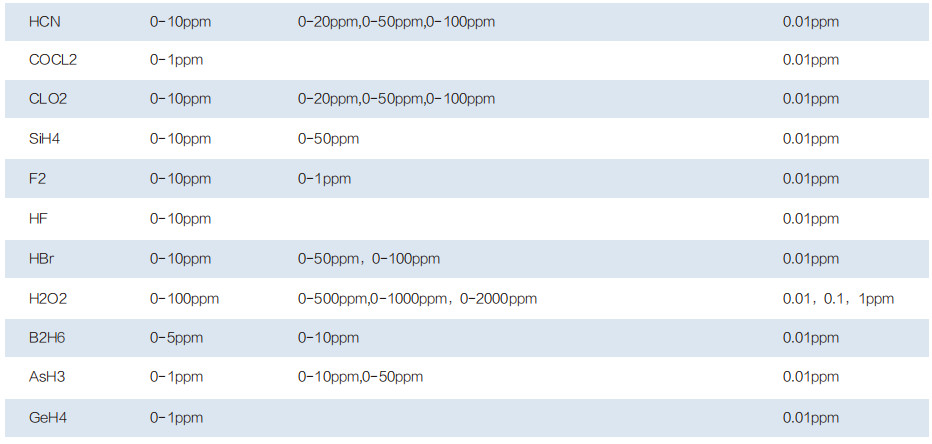

SG100 model can detect sigle gas, here's some gases we can detect:
Product configuration
Standard accessories:
1. Gas detector, 1 set
2. Magnetic wand, 1 set
3. User manual, 1 piece
4. Conformity Certificate/warranty card, 1 piece
5. Installation bracket, 1 set
6. Infrared Ray Controller, 1 piece
Optional:
Calibration cap, power adapter, external pump, explosion-proof gland,adapter NPT3/4, adapter M20 * 1.5, sound and light alarm, etc. Please contact us for details.

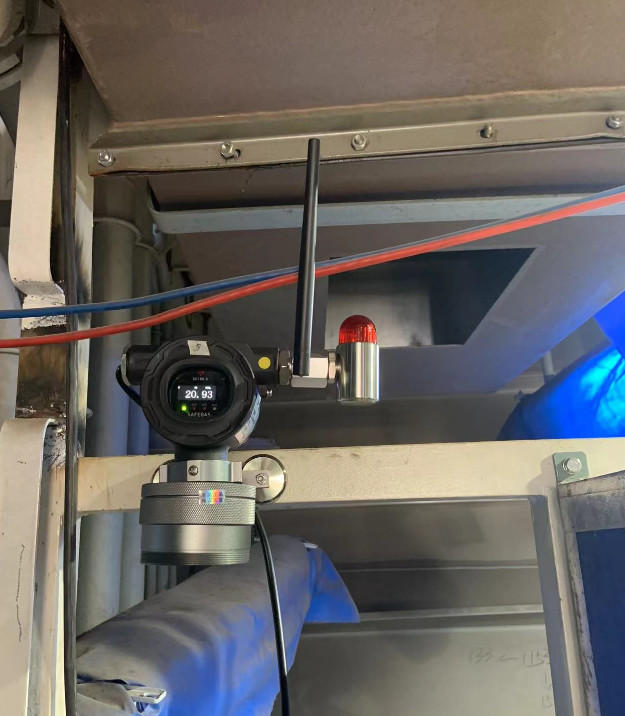

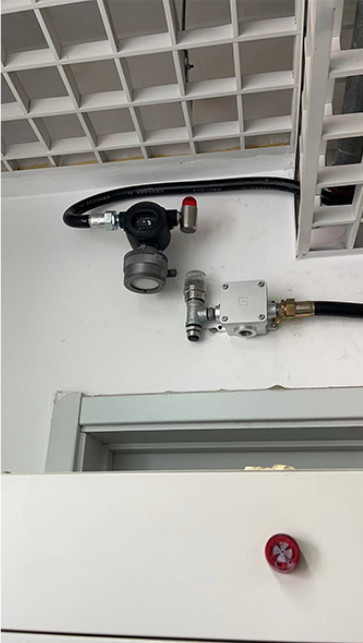

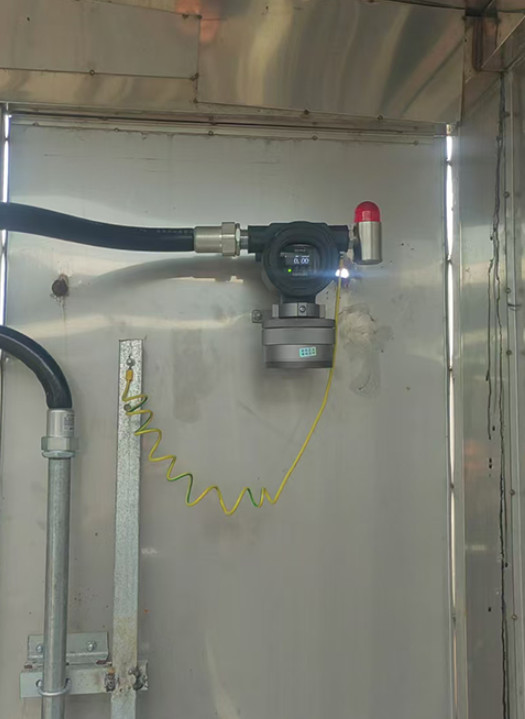

Product Application
Chemical Industry
Environmental Monitoring
Healthcare Applications
Automotive Industry
Industrial Safety
Wastewater Treatment
Greenhouse Gas Monitoring
Oil and Gas Exploration
Food and Beverage Production
Mining and Mining Operations
Why choose us?
1. R&D team experience: over 25 years.
2. Company certification: ISO9001, ISO45001
3. Product certification: IECEx (the only one in China), ATEX, CE
4. Delivery: 5-7 days
5. Yearly capacity: 80,000 units
6. Service: Professional sales staff provide 7*24 hours service
Safegas is a company that focuses on the design,production and sales of environmental monitoring equipment and system for 16 years. With “gas detector” as the core product, we have completed production lines and solutions according to different industries,such as Oil, Chemical, Medicine, Energy, Environmental Protection, Electronic, Municipal Engineering, Agriculture and Forestry, Household Appliances, etc. Through about 16 years of rapid development, Safegas becomes the influential supplier for environmental monitoring equipment and system in the domestic and overseas market.
For years, Safegas always insisted on the management concept “Market is orientation. Innovation is motivation. Quality to survival. Development to growth.” With friendly, open, and strict corporate culture and standardized management, Safegas gathers a lot of talents and builds up the management team and R&D team. All the staff cooperates well in product development, production, and maintenance, and has a deep understanding of the concept of “customer-oriented”, and runs the service spirit through the company operation and management, to win the trust and support from customers.
Depending on years of measurement experience and Safegas solutions, through independent research and development, cooperative development and learning overseas latest technology, Safegas’s products are domestic advanced, and can compete with overseas brand. We are seeking for development and progress constantly, and trying to meet diversified demands from customers.
