High Accuracy Methane Gas Leakage Probe Fixed Detector For Factories , 4-20mA RS485 Modbus Industrial Flammable Gas Detector

Name: High Accuracy Methane Gas Leakage Probe Fixed Detector For Factories 420mA RS485 Modbus Industrial Flammable Gas Detector
Brand: safegas
Price: 620 USD

Buy cheap High Accuracy Methane Gas Leakage Probe Fixed Detector For Factories , 4-20mA RS485 Modbus Industrial Flammable Gas Detector product

Brand Name : safegas

Model Number : YT98-H

Certification : ATEX/IECEX

Place of Origin : China

MOQ : 1 piece

Price : 620USD

Payment Terms : T/T

Supply Ability : 8000 pcs per month

Delivery Time : 3-5days

Measure Range : 0-500PPM/0-2000PPM

Gas : CH4

Sensor Type : Specified according to application

Language : Chinese/English

Alarm Type : Light+Sound+Vibration

Detection Principle : Pumping Electrochemical, NDIR, Catalytic, PID, etc

weight : 3.4kg (3.8kg with alarm light)

Size : 286*202*96mm (H x W x D)

Sampling : Built in pump

Display : High-light nixie tube display

Contact Now

Product video

Our advantages

High Accuracy Methane Gas Leakage Probe Fixed Detector For Factories , 4-20mA RS485 Modbus Industrial Flammable Gas Detector

Product description

High Accuracy Methane Gas Leakage Probe Fixed Detector For Factories , 4-20mA RS485 Modbus Industrial Flammable Gas Detector

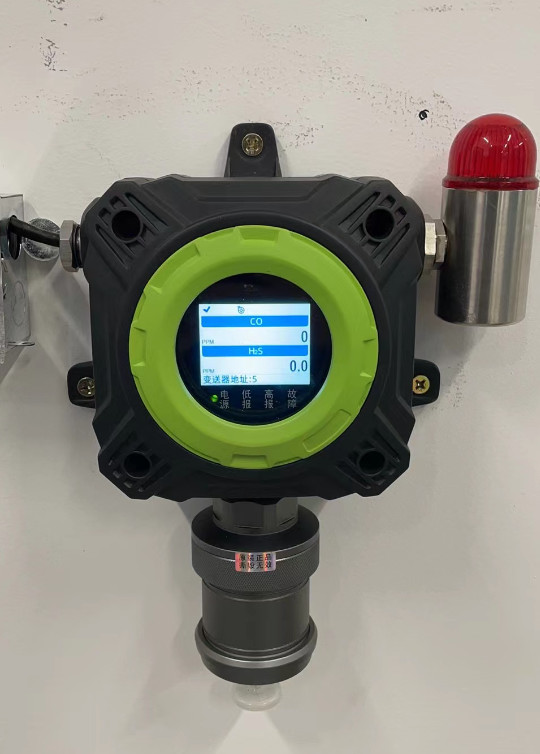

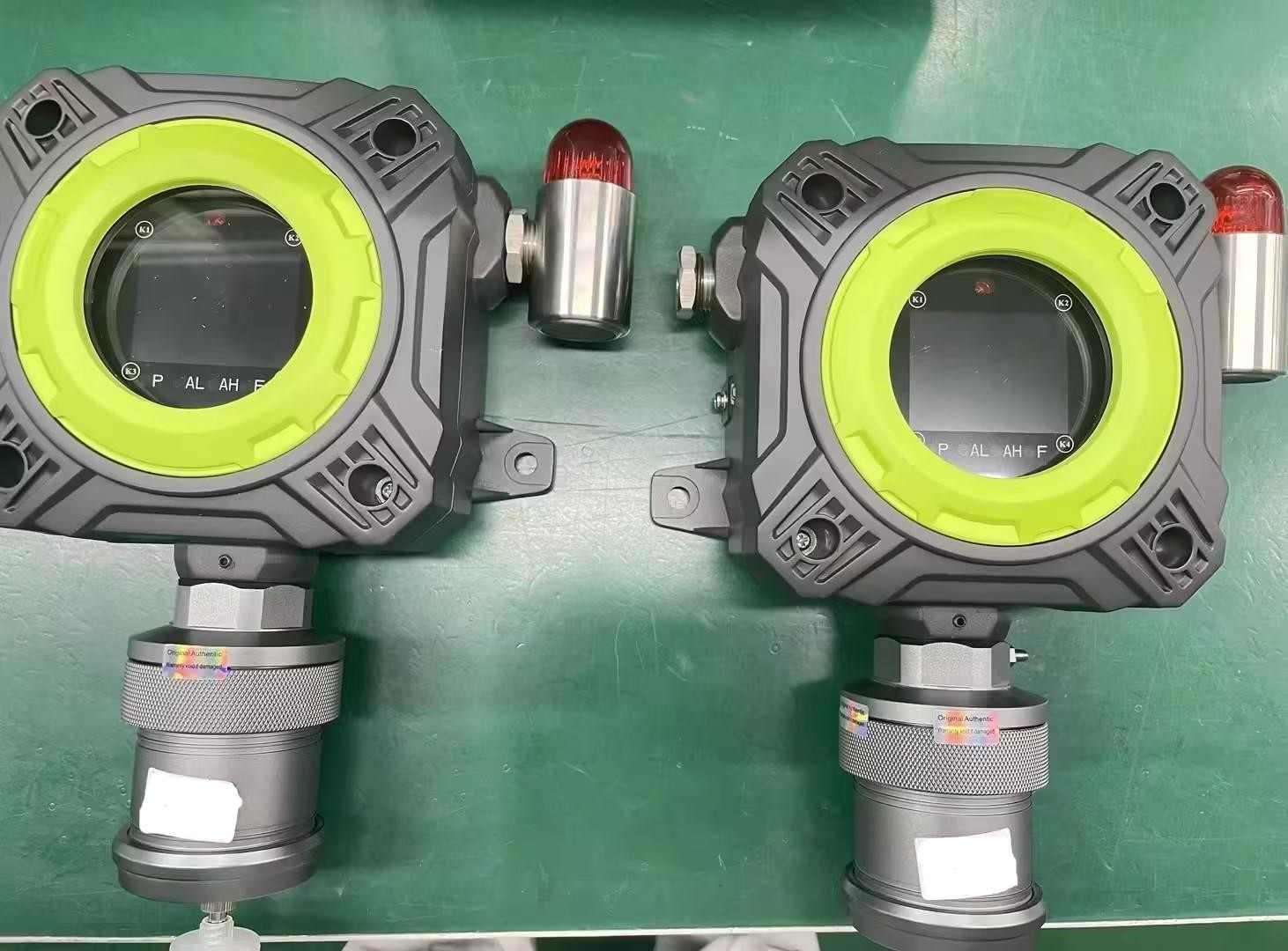

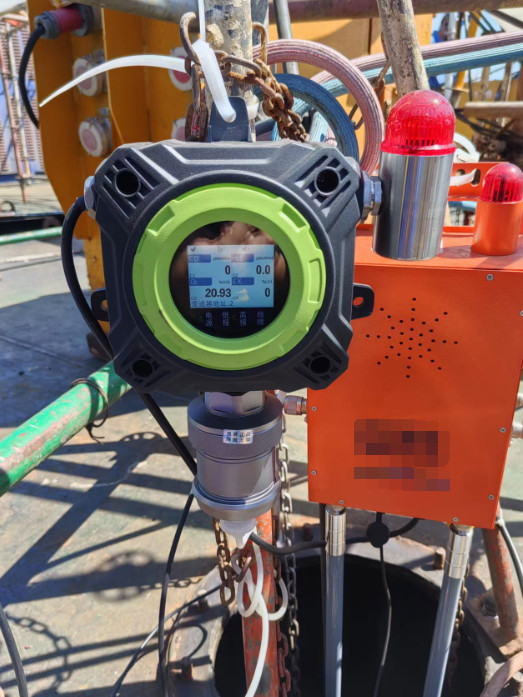

YT-98H-D/YT-98H-D-A series is a fixed single &multi gas detector. It is able detect 1-6 kinds of gases simultaneously and continuously. With IECEx, ATEX certified and non-contact magnetic wand design, it can be installed and operated in hazardous areas. It supports 3-wire 4-20mA, RS485 Modbus, relay and optional Hart signal output, making it compatible with most control systems. With optional wireless data transmission so user can view real time data on lap top,mobile phone remotely.

Product advantage

Up to 6 kinds ofgases can be detected simultaneously.In complex and multi-gas environments, it is able to saving installation time and effort
With wireless communicate function, uploading data to cloud platform so user is able to check and download data remotely.There is also SMSand E-mail alarm alert function in real time.(optional)
With manually span and zero calibration function,making gas monitoring more accurate and more reliable.
Standard 4-20mA analog signal, RS485 modbus signal and relay signal output, optional HART output.
Standard infrared remote control,optional non-contact magnetic wand control.
With sound and light alarm function, there is sound and light alarm when reaching the alarm point.(optional)
With fault alarm, will send alarm when sensor disconnect.
IP66 protection grade, water proof and dust proof

High Accuracy Methane Gas Leakage Probe Fixed Detector For Factories , 4-20mA RS485 Modbus Industrial Flammable Gas Detector

company profile

High Accuracy Methane Gas Leakage Probe Fixed Detector For Factories , 4-20mA RS485 Modbus Industrial Flammable Gas Detector

certifications

FAQ

specification

Sampling method	Built in pump
Pump flow rate	0.35-0.5 L/Min
Gas detected	Ozone(O3),VOC, Oxygen(O2), Combustible gases(EX/LEL), Carbon monoxide(CO), Hydrogen sulfide(H2S), according to customer's requirements
Measure Range	Specified according to application
Resolution	O3: 0.01ppm, 0.1ppm VOC: 0.001ppm, 0.01ppm, 0.1ppm, 1ppm O2: 0.01%VOL EX: 1%LEL/0.01%VOL CO: 0.1ppm/1PPM/1ppm H2S: 0.01ppm/0.1PPM
Response time(T90):	≤10 seconds
Signal output	4-20mA, RS485, 1 set of relay output; 1-5VDC(optional), 2 sets of relay output(optional)
Display:	High-light nixie tube display
Zero shift	≤±1%(FS/year)
Connection mode	G1/2 external thread explosion-proof flexible pipe
Operating time	24H
Size	28620296mm (H x W x D)
Weight	3.4kg (3.8kg with alarm light)
Protection grade:	IP65
