Why choose us?
1. R&D team experience: over 25 years.
2. Company certification: ISO9001, ISO45001
3. Product certification: IECEx (the only one in China), ATEX, CE
4. Delivery: 5-7 days
5. Yearly capacity: 80,000 units
6. Service: Professional sales staff provide 7*24 hours service
Product Overview
SG100-D series is an intelligent hot swappable fixed multi gas detector, which is easy for maintenance after installation. It can monitor 4 gases for the continuous monitoring in one unit. With IECEx, ATEX certificates, explosion level reaches Ex db IIC T6 intrinsically safe grade. Adopt magnetic wand design, it’s safe and easy to do menu navigation in explosion areas.
Product Picture
Product Advantage
1) IP66/IP68 water & dust resistant
2) Standard 1 set of 4-20 mA current signal(3 wires), RS485 Modbus, 2 sets of relay signal output;
3) Optional with 4 sets of 4-20 mA current signal(3 wires)
4) Optional LORA,4G wireless transmission modes canbe selected
5) Module chamber design, no need to disassemble of the whole machine or return for calibration when maintenance, just replace the sensor chamber only and can work properly
6) One-person calibration is easily performed using calibration cap
7) Quick site installation using a mounting plate accessory
Product specifications
| Detected Gas | CO2 and O2 |
| Principle | Infrared Ray(CO2), Electrochemical(O2) |
| Measure Range | CO2 0-5000PPM, O2 0-30%VOL |
| Resolution | CO2 1PPM, O2 0.1%VOL |
| Install Method | Wall-mounted |
| Events | 1000 sets per channel, can download by GPC |
| Precision | ≤±2%FS or ±10%(Depends on sensor) |
| Response time | T90<60s(Depends on sensor) |
| Repeatability | ±2%F.S |
| Temperature | -20℃～50℃ |
| Humidity | 10-95%RH (non-condensing) |
| Explosion-Proof | IECEX:Ex db IIC T6 Gb,Ex db ia IIC T6 Gb ；ATEX:Ex db IIC T6 Gb,Ex db ia IIC T6 Gb |
| Degree of protection | IP66/IP68 |
| Power | 12-30V DC |
| Dimensions | 178×129×70mm |
| Weight | 1.4kg (No mounting bracket ,alarm light) |
| Approval | CE, CNEX explosion proof certificate, CMC(China Metrology Certification), IECEx, ATEX |
| Warranty | 12 months |
Standard configuration list
1) Gas detector 1 piece
2) Magnetic wand 1 piece
3) User manual 1 piece
4) Certificate of Conformity/Warranty Card 1 piece
5) Mounting plate 1 piece
6) M4 bolt 3 piece
7) M4 nut 3 piece
8) M4 Screw pad 3 piece
9) M4 flat mat 3 piece
Company Profile
Established in 2010, Shenzhen Yuan Te Technology Co., Limited(Safegas)is a company that focuses on the design, production and sales of gas detection equipment and system for 16 years. With"gas detector" as the core product, we have completed production line and solutions according to different industries, such as Oil, Chemical, Medicine, Energy, Environmental Protection, Electronic, Municipal Engineering, Agriculture and Forestry, Household Appliances, etc.

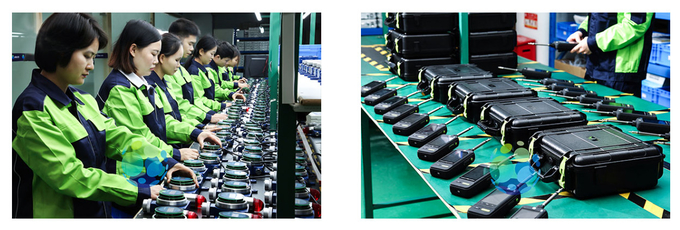

As a professional gas detector manufacturer, we control the entire process from design-R&D-production-sales to ensure the consistency of product quality. We have more than 100 independent intellectual property patents in design and development;In production, we have skilled technical workers and a complete industrial line, which can grasp the production and quality of products throughout the process;and our company has rich overseas sales experience and a professional sales team, can provide customers with 7*24h considerate service.

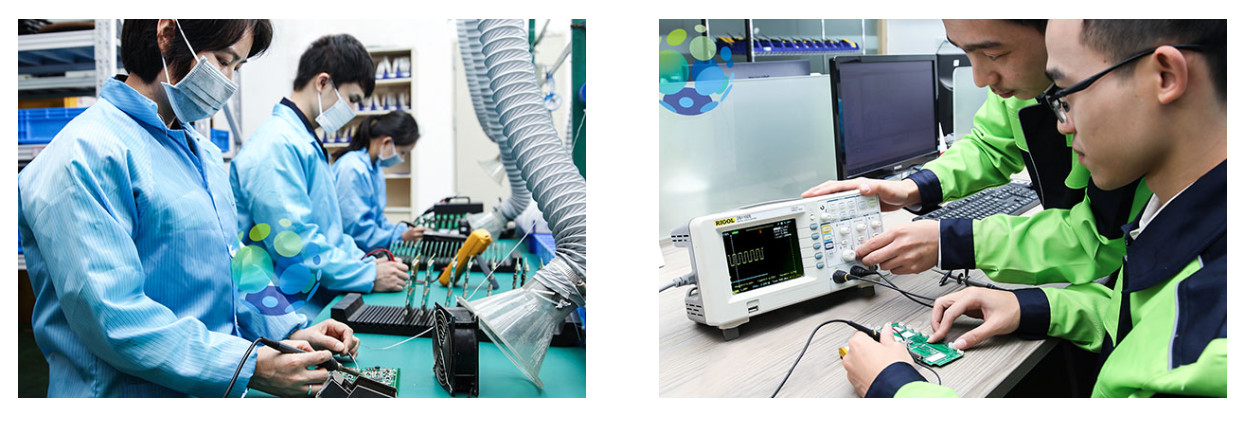

We have professional R&D department, thet have been engaged in gas detect industrial for about 25 years.They have professional knowledge and rich experience,can provide customers with professional technical after-sales service.
We carry out a strict quality management system and take the principle of quality first as the core to produce gas detector,Therefore, we have been recognized by authoritative organizations and obtained ISO9001 and ISO14001 certifications to provide customers with safe and environmentally friendly products.
Our products have obtained IECEx and ATEX explosion-proof certification, so our detectors can be used in hazardous areas such as mines, underground and oil plants. We are the first and currently the only manufacturer in China who obtain this certification, products without explosion-proof certification are prohibited from being used in dangerous areas.
Our core components, such as ICs or sensors, use imported brands like Honeywell, CITY and Alpha, which improving the accuracy of our product,stabilizing the product's service life, ensuring the accuracy of detection and protecting the safety of customers' lives.
Our complete product line and stable inventory provide customers with fast delivery. If the order quantity is less than 10 pcs, we usually deliver them within 3 days. If the quantity exceeds 100 pcs, under normal circumstances,we can deliver it within half a month.
FAQs
Q1: What is a gas detector?
A1: Gas detector is an instrument for gas leakage concentration detection, including a portable gas detector, fixed gas detector, etc.
Q2: What does a gas detector detect?
A2: Combustible gases: Natural gas (methane), liquefied gas, coal gas, acetylene, pentane, alkynes, toluene, etc.
Toxic gases: Carbon monoxide, hydrogen sulfide, ammonia, chlorine, phosphine, sulfur dioxide, hydrogen chloride, chlorine dioxide and other toxic and harmful gases.
Q3: What is the ppm unit of the gas detector?
A3: ppm represents the volume concentration of the gas, that is, the volume of pollutants contained in one million volumes of air. For example, if the concentration of ammonia is 30ppm, it means that the volume of ammonia in one million volumes of air is 30.
